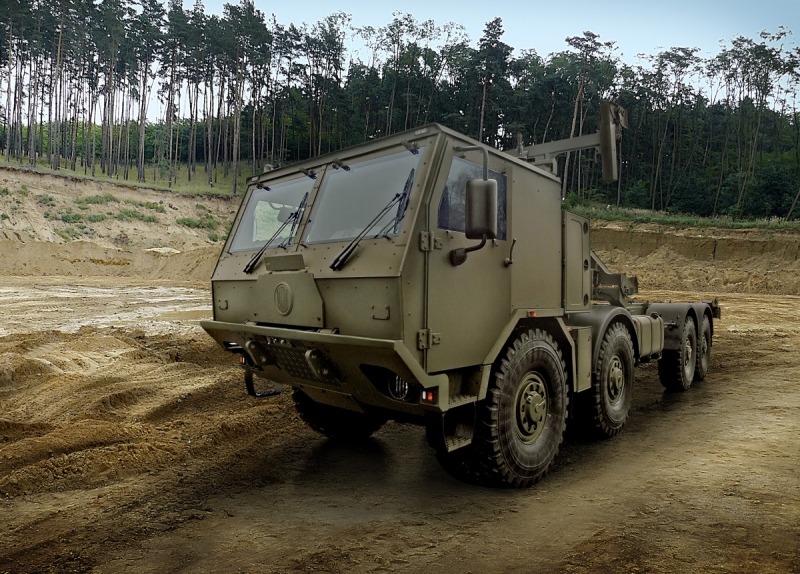

8x8 HIGH MOBILITY HEAVY DUTY CHASSIS CAB WITH LOAD HANDLING SYSTEM

T 815-790R99 38 300 8x8.1R

• Independent suspension
• 18,100 kg payload
• 8x8 drive
• 300 kW

Engine	TATRA T3C-928-90, EURO 3, 300 kW, 2,100 Nm/1,000 RPM
Transmission	TATRA 14 TS 210L, semiautomatic split, 14-speed
Cab	2+1 seats, C-130 transportability, prepared for add-on armoring
Wheelbase	1,950 + 3,660 + 1,450 mm
Gross vehicle weight (max.)	35,800 kg
Payload (max.)	18,100 kg
Top speed	115 km/h
Superstructure	The container lifting frame stowage assembly at the front of the subframe. Rated lift capacity 16,500 kg (even 300 mm below ground).

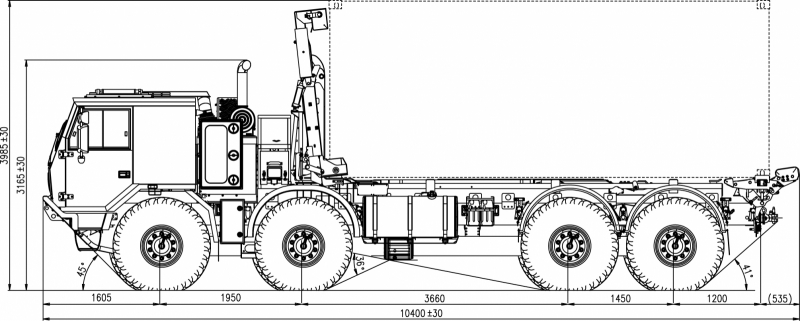

Truck dimensions
